Glass fiber reinforced bars used in concrete to reinforce the tension of civil engineering structures.
Keco Rebar includes mesh, bending, and straight rebar products applicable to buildings and structures. It was developed with decades of product development experience in construction, mining, and infrastructure sectors. With a deep understanding of these industries and excellent material properties, global demand is increasing every year due to reduced labor costs, equipment costs, work efficiency, extended structure life, reduced maintenance costs, and slimming structures.

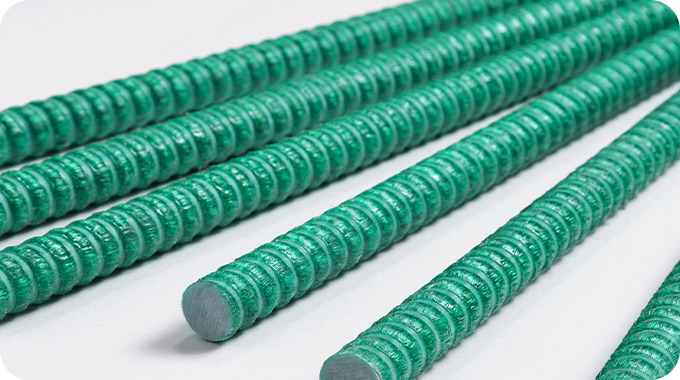

KEco G-Rebar Standard Specification
* Scroll left and right to see the content.
| Type NO. | Nominal Diameter (mm) |
Nominal Area (mm2) |
Ultimate Tensile Load (kN) | Guaranteed Tensile Strength (MPa) | Modulus of Elasticity (GPa) | Weight (g/m) |
Shear Strength (MPa) |
|---|---|---|---|---|---|---|---|
| VRS100-6 | 6.4 | 31.7 | 35 | 1,104 | ≥ 50 | 66.6 | ≥ 150 |
| VRS100-8 | 8.0 | 49.5 | 52 | 1,051 | ≥ 50 | 104.0 | |
| VRS100-10 | 9.5 | 71.3 | 74 | 1,038 | ≥ 50 | 149.8 | |
| VRS100-13 | 12.7 | 126.7 | 123 | 971 | ≥ 50 | 266.2 | |
| VRS100-16 | 15.9 | 198.6 | 186 | 937 | ≥ 50 | 417.3 | |
| VRS100-19 | 19.1 | 286.5 | 253 | 883 | ≥ 50 | 601.9 | |
| VRS100-22 | 22.2 | 387.1 | 333 | 860 | ≥ 50 | 813.3 | |
| VRS100-25 | 25.4 | 506.7 | 428 | 845 | ≥ 50 | 1,064.7 | |
| VRS100-29 | 28.6 | 642.4 | 529 | 823 | ≥ 50 | 1,348.3 | |
| VRS100-32 | 31.8 | 794.2 | 631 | 795 | ≥ 50 | 1,666.6 |
KEco C-Rebar
KEco CFRP rebar with carbon fiber as a reinforcement material has excellent specific strength and mechanical performance, making it widely used in pre-stress and high-strength structures.
* Scroll left and right to see the content.
| Type NO. | Size. | Nominal Diameter (mm) |
Nominal Area (mm2) |
Ultimate Tensile Load (kN) | Guaranteed Tensile Strength (MPa) | Modulus of Elasticity (GPa) |
|---|---|---|---|---|---|---|
| CVRS100-6 | 2 | 6 | 31.7 | 71 | 2,241 | 124 |
| CVRS100-10 | 3 | 10 | 71.3 | 154 | 2,172 | |
| CVRS100-13 | 4 | 13 | 126.7 | 262 | 2,068 |

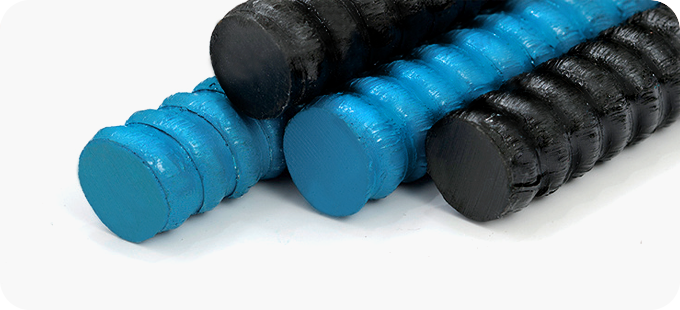

KEco B-Rebar
The KEco BFRP rebar, which uses basalt fibers as a reinforcing material, is suitable for permanent structures due to its high strength and elastic modulus.
* Scroll left and right to see the content.
| Type NO. | Diameter (mm) |
Ultimate Tensile Load (kN) | Cross Section (mm2) |
Ultimate Tensile Strength (MPa) | Modulus of Elasticity (GPa) | Ultimate Shear Strength (MPa) |
|---|---|---|---|---|---|---|
| BVRS100-6 | 6 | 50 | 50.3 | 1000 | ≥ 46 | ≥ 150 |
| BVRS100-10 | 10 | 79 | 78.5 | 1,000 | ||
| BVRS100-16 | 16 | 159 | 177.0 | 1,000 | ||
| BVRS100-20 | 20 | 227 | 284.0 | 1,000 | ||
| BVRS100-25 | 25 | 362 | 452.0 | 1,000 |

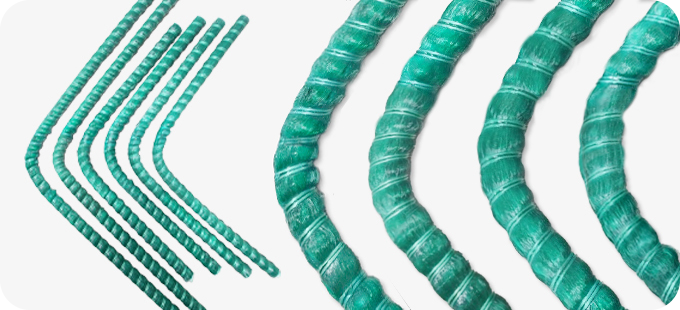

KEco Bending Type
Concrte reinforcement products to strengthen different parts of construction, including foundations, columns, beams, slabs, and retaining walls that need to undergo processing.
- Can be customized, but difficult to process on site

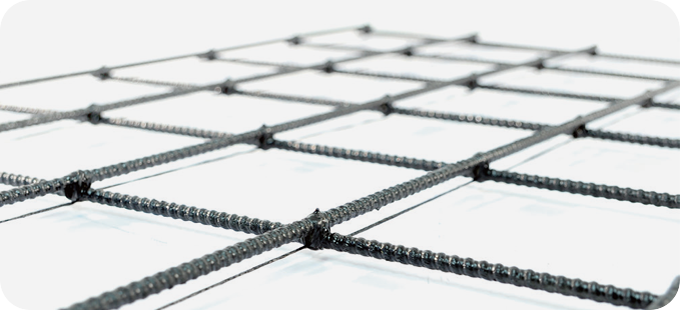

KEco Mesh Type
The mesh type is buried at the horizontal joint and installed to maintain safety at the intersection of the expansion and contraction cracks and the lateral force.
Application Field
KEco Rebar can be applied as a substitute of steel reinforcement
in all fields, including on-site building construction, road constructio,
port construction, industrial engineering, agriculture, etc., which require
tensile strength and crack control for structural concrete elements.
